keyvis Commands
A growing set of helpful commands for everyday work in Softimage
Gallery of example screenshots
Motivation
Features
CopySelectedClusters.js
CreateImagePlaneFromClip.js
PartitionsFromLayers.js
SelectCloneMaster.js
SelectOperatorInputs.js
SetClipEndTime.js
SetCurrentCharacterKeySetFromSelection.js
SetIslandFilter.js
SixPointAlign.js
Version History
Installation
Plugin Changes
Terminology
Technical Information
Future development and improvements
Please visit our bug tracker on google code for a list and current status of known bugs, or to report bugs: http://code.google.com/p/keyvis-dev/issues/list kyvis Commands are open source and can be checked out from google code via Subversion. If you have scripting and/or C++ coding experience, please feel free to contribute to the project by adding features or fixing bugs.
Softimage bugs, SDK limitations and suggestions for improvement
Related Posts:
Montag • Oktober 3, 2011 • by Eugen
Plugin Command for Softimage

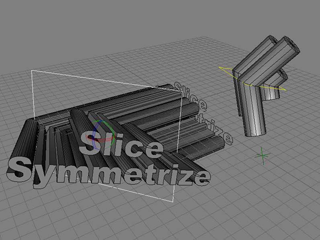

This Command mimics the 3ds max Symmetry Modifier.
First it creates a Curve Rectangle of the size of the selection BBox, then applies a Slice and a Symmetrize Op to the selected polymeshes and links their Custom Planes to the Rectangle.
The rectangle can now be used to define the symmetry plane.
Since the factory Symmetry Op does not have a convenient option to link it’s symmetry plane to an object (as the Slice Op does), SCOPs are needed on the Symm Op’s Custom Plane’s posx, posy, posz, rotx, roty, rotz parameters.
Note: this does not circumvent the problem in Softimage that you cannot work beneath Topology Operators in the Operator Stack and see the end-result live.
Usage:
– Select one or more object(s).
– Model > Modify > Poly.Mesh > SliceSymmetrize.
Download: SliceSymmetrize.zip
Dienstag • Dezember 7, 2010 • by Eugen
Plugin Command for Softimage

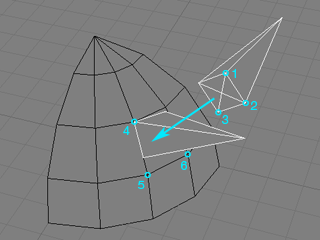

Align object(s) to another one by defining source and target plane to match.
Usage:
– Select one or more objects,
– MCP > Transform > SixPointAlign,
– Pick 3 source and 3 target points.
Download: SixPointAlign.zip
Dienstag • Dezember 7, 2010 • by Eugen
Plugin Command for Softimage

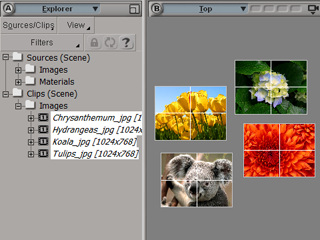

This Command creates a Grid Primitive for each selected Image Source, with the correct proportions, Constant Shader and Texture Support.
Usage:
– Drag&Drop Images from Windows Explorer into SI Explorer / Clips / Images,
– Select Image(s) in the list,
– Create > Primitive > Polygon Mesh > ImagePlane
Download: ImagePlane.zip
