Softimage is a great tool, it gets you further than any other commercially available package without having to resort to scripting and custom built tools. However, because are always seeking new and faster ways of doing things by improving established workflows, and because we want to say thanks to all those people who generously share their custom tools with the community, we want to sharing at least those of our tools we consider generic and stable enough for public consumption.
QMenu – a customizable Quad menu system for Softimage
Curve Tools – a set of Topology Operators to simplify and enhance Curve and Subcurve editing
Commands – a growing set of custom Softimage commands for everyday tasks
Primitives – New and enhanced geometric primitives for Softimage
Freitag • Oktober 7, 2011 • by Eugen
Plugin Commands for Softimage / Topology Operators
Useful for editing CurveLists/Subcurves.
Page link

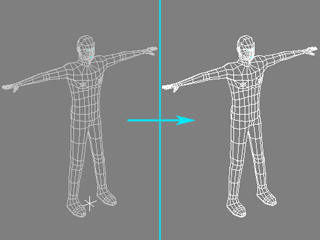

Montag • Oktober 3, 2011 • by Eugen
Plugin Command for Softimage
Dissolves a Model by moving the Model’s children out and deleting the remaining empty Model Null.
Usage:
– Select a Model,
– Model > Modify > Model > DissolveModel
Download: DissolveModel.zip
Montag • Oktober 3, 2011 • by Eugen
Plugin Command for Softimage
This Command mimics the 3ds max Symmetry Modifier.
First it creates a Curve Rectangle of the size of the selection BBox, then applies a Slice and a Symmetrize Op to the selected polymeshes and links their Custom Planes to the Rectangle.
The rectangle can now be used to define the symmetry plane.
Since the factory Symmetry Op does not have a convenient option to link it’s symmetry plane to an object (as the Slice Op does), SCOPs are needed on the Symm Op’s Custom Plane’s posx, posy, posz, rotx, roty, rotz parameters.
Note: this does not circumvent the problem in Softimage that you cannot work beneath Topology Operators in the Operator Stack and see the end-result live.
Usage:
– Select one or more object(s).
– Model > Modify > Poly.Mesh > SliceSymmetrize.
Download: SliceSymmetrize.zip

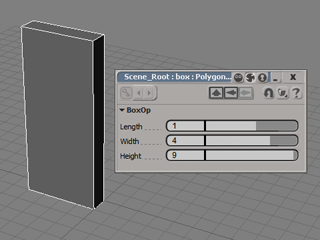

Dienstag • Dezember 7, 2010 • by Eugen
Plugin Command for Softimage / Generator Operator
Brilliant, isn’t it? 😉
Can you believe it: Softimage still only has a „Cube“ Primitive with just one length parameter.
This command adds an empty Polygon Mesh to the scene and applies the Generator Operator „BoxOp“ with parameters Length, Width, Height.
Get > Primitive > Polygon Mesh > Box
Download: Box.zip
Dienstag • Dezember 7, 2010 • by Eugen
Plugin Command for Softimage
Align object(s) to another one by defining source and target plane to match.
Usage:
– Select one or more objects,
– MCP > Transform > SixPointAlign,
– Pick 3 source and 3 target points.
Download: SixPointAlign.zip
Dienstag • Dezember 7, 2010 • by Eugen
Plugin Command for Softimage
This Command creates a Grid Primitive for each selected Image Source, with the correct proportions, Constant Shader and Texture Support.
Usage:
– Drag&Drop Images from Windows Explorer into SI Explorer / Clips / Images,
– Select Image(s) in the list,
– Create > Primitive > Polygon Mesh > ImagePlane
Download: ImagePlane.zip
